1200bar High Pressure Water Jet Cleaning System For Construction Aluminum Formwork Cleaning

High Pressure Water Jet Cleaning System For Construction Aluminum Formwork Cleaning

Product Overview:
The high pressure water jetting system offers an advanced and efficient solution for removing hardened concrete residues from construction aluminum formwork. After dismantling, aluminum formwork panels—especially corners, C-channels, stair molds, and flat boards—often retain stubborn layers of cement that require thorough cleaning before reuse. Traditional methods like shot blasting may provide fast results, but they severely wear down the aluminum surface, reducing formwork lifespan and increasing material costs.

In contrast, high pressure water jet cleaning delivers a non-abrasive, highly effective cleaning method that preserves the integrity of the aluminum surface, extends its service life, and significantly reduces labor and material costs.

Advantages of High Pressure Water Jet Cleaning:
✅ No surface damage – unlike shot blasting, water jetting does not scratch or erode the aluminum
✅ Increased reuse cycles – maintain formwork quality over multiple construction phases
✅ Efficient removal of tough cement, especially in corners and seams
✅ Reduces labor intensity and saves raw material cost
✅ Environmentally friendly, no dust or abrasive media pollution

Technical parameter table

Three Cleaning Methods Available:

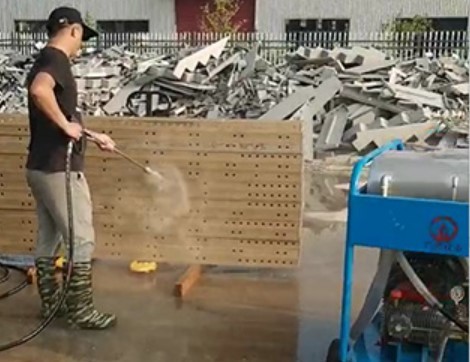

1️⃣ Manual Cleaning with High Pressure Jet Gun

• Pressure Range: 500–800 bar

• Operation Mode: Portable high pressure washer + manual high-pressure spray gun

• Advantages:

  • Flexible operation for irregularly shaped templates

  • Easy to reach corners, grooves, and complex profiles

  • Suitable for on-site or small batch cleaning tasks

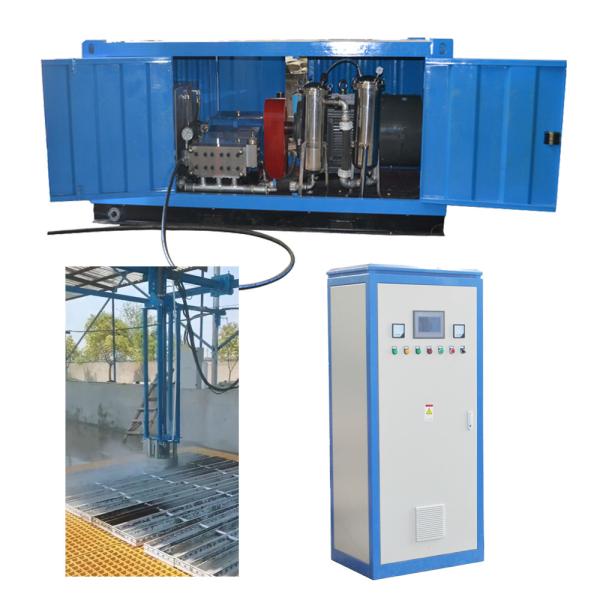

2️⃣ Semi-Automatic Gantry Cleaning System

• Pressure Range: 1200–1500 bar

• System Configuration: High pressure pump unit + gantry-type moving frame with rotary disc spray heads

• Control Options: Remote control or preset motion paths (forward/backward, left/right movement)

• Advantages:

  • High cleaning efficiency for standard flat panels and side formwork

  • Reduced manual intervention, improving safety

  • Excellent for medium to large-scale cleaning workshops

  • High cost-performance ratio

3️⃣ Fully Automatic Conveyor Cleaning Line

• Pressure Range: 1200–1500 bar

• System Configuration:

  • High pressure jetting unit

  • Conveyor track system

  • Dual-side cleaning spray heads (top & bottom)

• Working Principle: Aluminum formwork panels are placed on the track and cleaned simultaneously from both sides as they pass through the system

• Advantages:

  • Ideal for mass production and high-volume cleaning

  • Consistent and uniform cleaning quality

  • Fully automatic operation – minimal labor required

  • Exceptional efficiency and throughput

Application Fields:

• Construction aluminum formwork cleaning

• Cement removal from stair molds, flat panels, and C-channels

• Pre-maintenance cleaning before reuse

• Concrete residue removal in precast panel production

Conclusion:
Whether you require flexible handheld cleaning for on-site work or fully automated cleaning for a formwork processing plant, XUZHIYANG MACHINERY provides complete high pressure water jet solutions tailored to your operational scale and workflow. With pressure ranges from 500 bar to 1500 bar, our systems help construction companies maximize template reuse, reduce costs, and maintain high construction quality.
